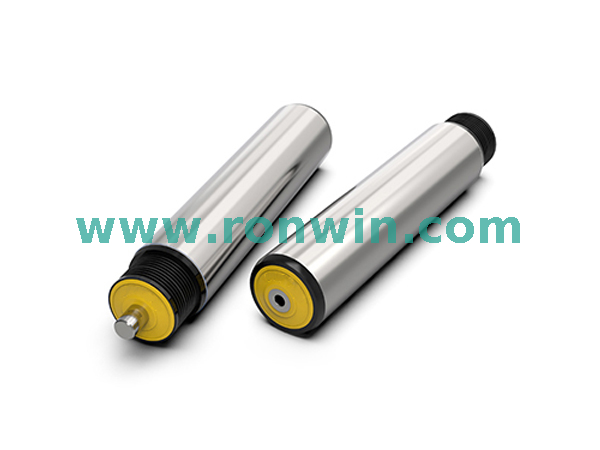

Series R2260 O-belt Pulley Roller
Application area
Internal driven conveyor systems, the O-belt pulley is located at the end of the roller which separates the driven area and the conveying area avoiding interference between O-belt and the transported goods, precision ball bearing with polymer bearing housing, which provides an attractive, smooth and quite running roller. Widely applied in light load conveyors to transport cases, carboards, containers, barrels or tires.
Smooth and low noisy
Without grooves on the tube, precision ball bearing and polymer bearing housing which makes the roller has the advantages of smooth running and low noisy.
Good protection against dirt and water
The design of the end cap seal protects the bearing by providing excellent resistance to dust and splashed water.
Lateral loading
Standard configuration, the bearing housing with end cap and bearing is pressed into the tube and the tube ends are rounded, thereby allowing materials to be easily moved on from the side.
Technical data
General technical data | |
Max. load capacity | 180 KGS |
Max. conveyor speed | 60 m/min |
Temperature range | −5 to +40 °C |
Material | |
Tube | Carbon steel, stainless steel |
Shaft | Antirust oil coated steel, Zinc-plated steel, Stainless steel |
Bearing housing | Polyamide, black |
End cap | Polypropylene, yellow/grey |
Bearing | Precision ball bearing |
Drive Element | |
O-belt pulley | Polyamide, black |
Design versions | |
Surface treatment | Zinc-plated, chrome-plated |
Tube sleeves | PP sleeve, PU sleeve |
Lagging | Rubber, PU |
Diagram of R2260 O-Belt Wheel Roller
Dimension of series R2260 with spring loaded installation
Tube Material | D × T | Shaft | E | L |
Steel, stainless steel | 50×1.5 | Φ12/11 HEX | E=W+35.5 | L=W+57.5 |
Dimension of series R2260 with female thread installation
Tube Material | D × T | Shaft | E | L |
Steel, stainless steel | 50×1.5 | Φ12/11 HEX | E=W+35.5 | L=W+36.5 |
