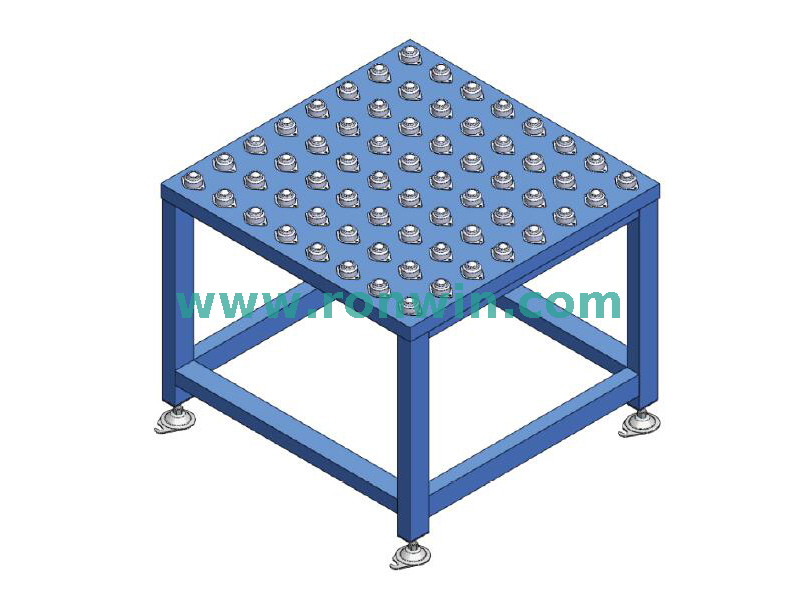

BT300 Ball Transfer Table
The ball transfer table is a platform formed by fixing several ball transfer unit with required loading capacity on a steel plate in a certain distance. Due to the flexible rolling of the ball transfer unit, objects such as work plates or material boxes running on it can slide very flexibly, thereby greatly reducing the labor intensity of workers.
Application
Be suitable for indoor environment.

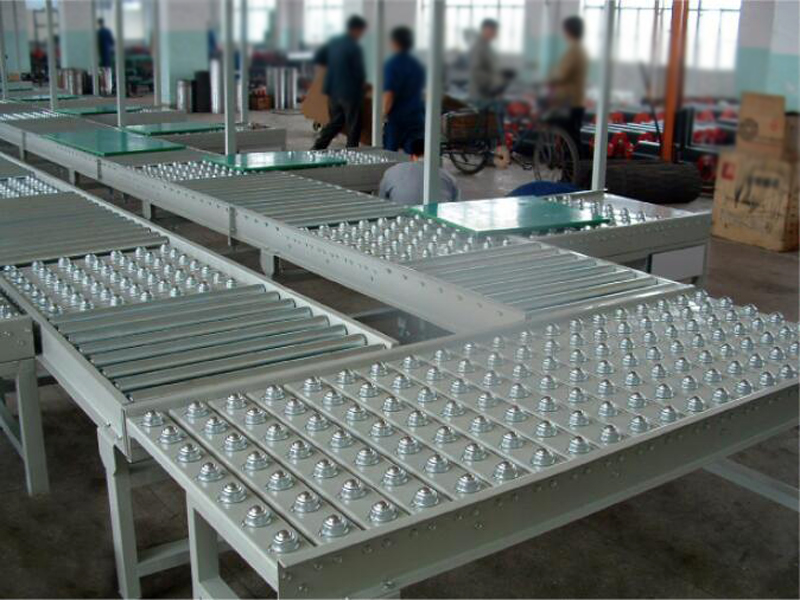

Applied in curved part, distributary confluence part of conveyor system.
Features
Simple structure, maintenance free.
Labour saving, all directions.

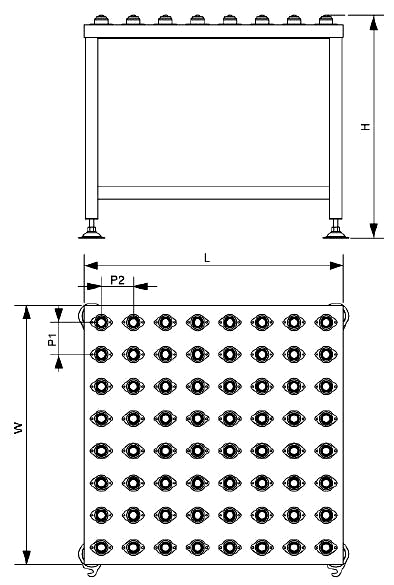

| Specifications (unit: mm) | |
|---|---|
| rack length(L) | 500-1500 |
| rack height(H) | 400-1000 |
| conveying width(W) | 500-1000 |
| pitch(P1) | 150, 200, 300, 400, 500, 600 |
| pitch(P2) | 100, 120, 150 |
| support plate material | folded plate |
| support leg material | square steel tube |
| ball transfer unit | light duty/meidum duty/heavy duty are customized |

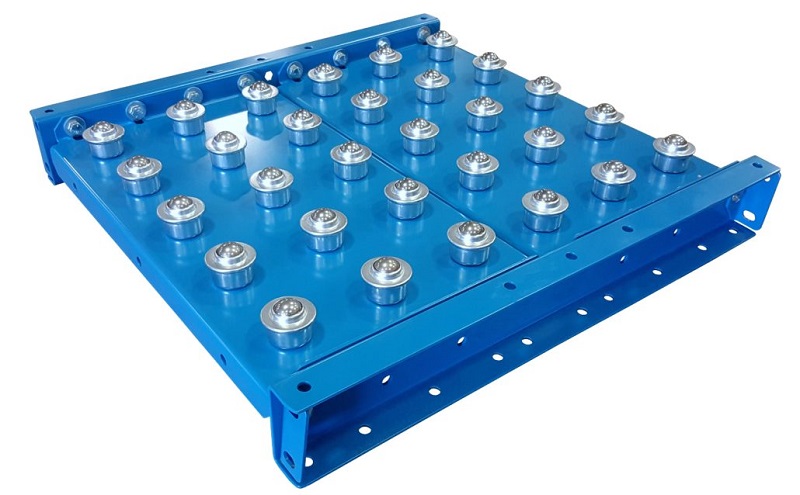

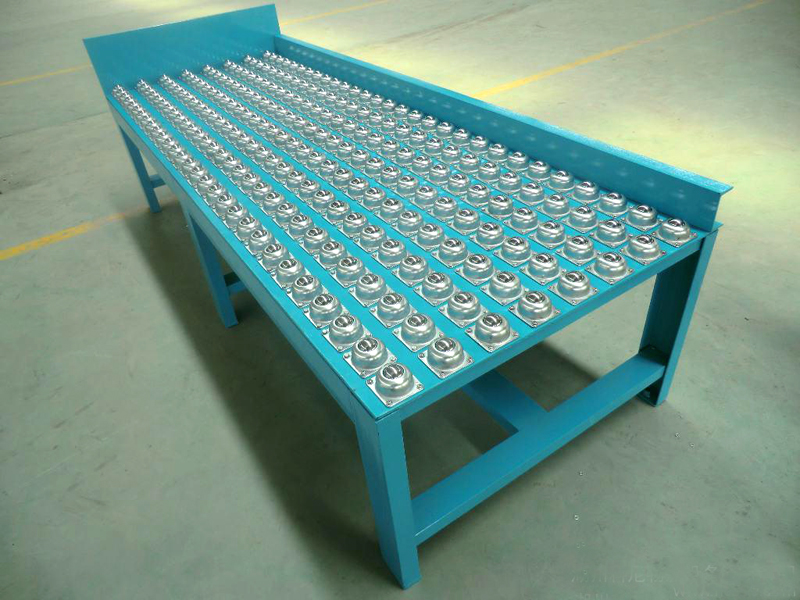

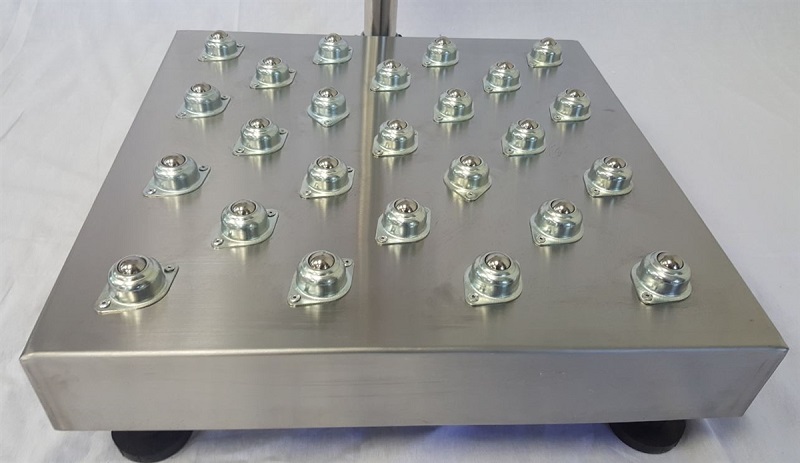

Some product pictures or applications
